Auger Torque 8000MAX Package c/w Cradle Hitch and Auger (5-10t Excavators)

£4,500.00 +20% VAT (£5,400.00)

SKU: 21-3552101500S2600-PACKAGE Category: Tags: , , , ,

Description

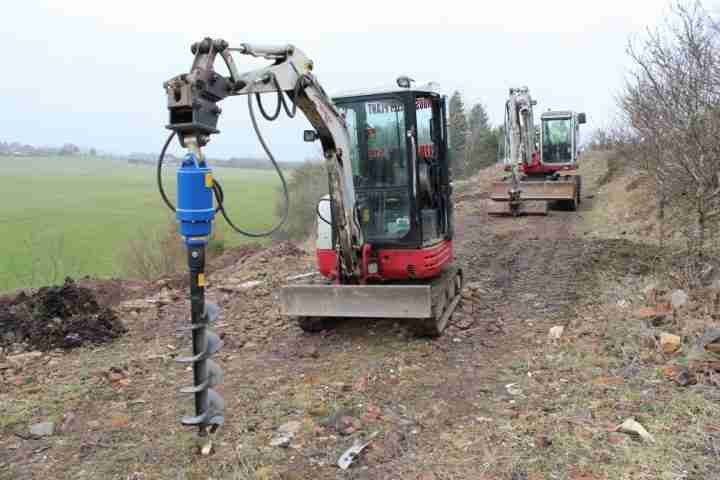

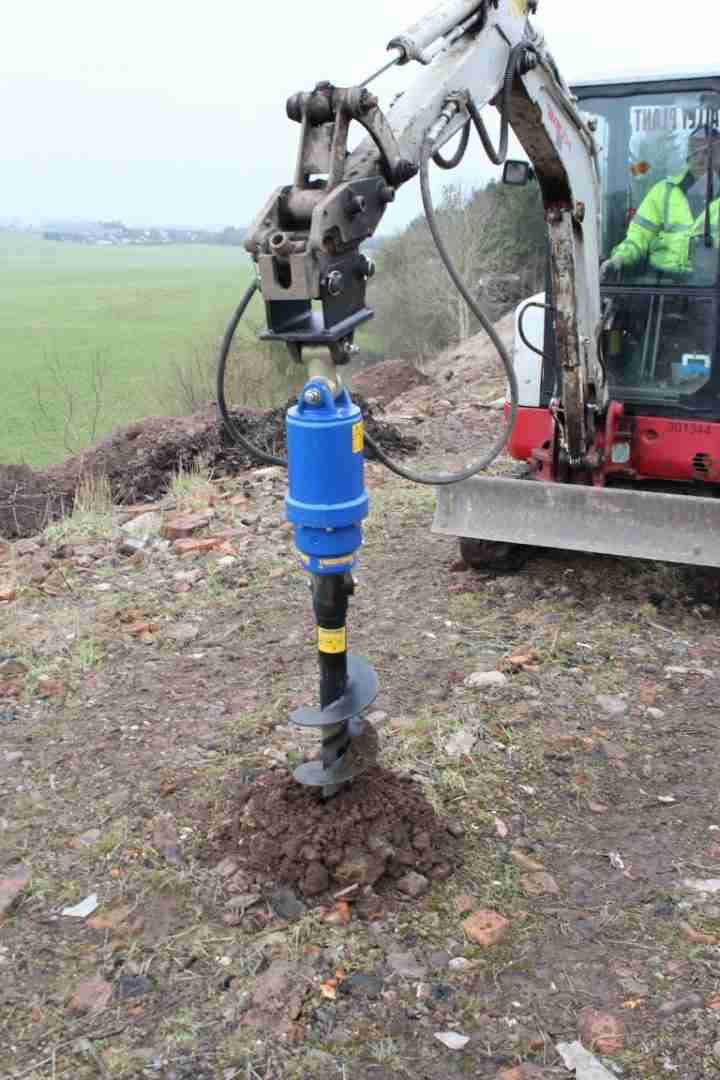

Our special Auger Torque Package Deal suitable for excavators from 5ton to 10ton. We are offering an all-in-one package deal ideal for excavators in the 5ton to 10ton range or JCB 3CX. The 8000MAX Earth Drill is proven to work on excavators such as the Takeuchi TB290 and JCB 3CX

The 8000 MAX package contains the 8000 MAX Earth Drill, a Double Pin Cradle Hitch and an S5 Auger.

The S5 Auger included in this deal is a Tungsten Rock auger available in diameter up to 450mm

High quality hydraulic motors, output shaft bearings which are 50% larger than the nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the 5000-8000MAX series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

Excavators 4.5T to 10T and JCB 3CX

Oil Pressure Range: 80 – 240 Bar

Torque Range: 2717 – 8152 Nm

Oil Flow Range: 70 – 150 lpm

Speed Range: 33 – 70 rpm

Hub Options: 75mm Square (STD)/ 2.5″ Hex

Height: 780 mm

Width: 269 mm

Weight: 116 kg

Auger Range: S5

Rec. Drilling Diameter Range: 150 – 1200 mm

Additional information

Bobcat

E62, E85

Case

CX85D, CX90D

Caterpillar

307.5, 308 CR, 309 CR, 310

Doosan

DX85R-3

Hitachi

ZX85U

Kubota

KX080

WackerNeuson

ET90

Takeuchi

TB175, TB175W, TB260, TB285, TB290

Sany

SY75C, SY80U

Komatsu

PC58MR, PC80MR, PC88MR

Volvo

ECR88

Kobelco

SK75, SK85

Yanmar

ViO80, ViO82

Terex

TC75, TC85
