Our Auger Torque package deal suitable for excavators from 3ton to 5ton. We are offering an all-in-one auger attachment solution for small excavators in the 3ton to 5ton range.

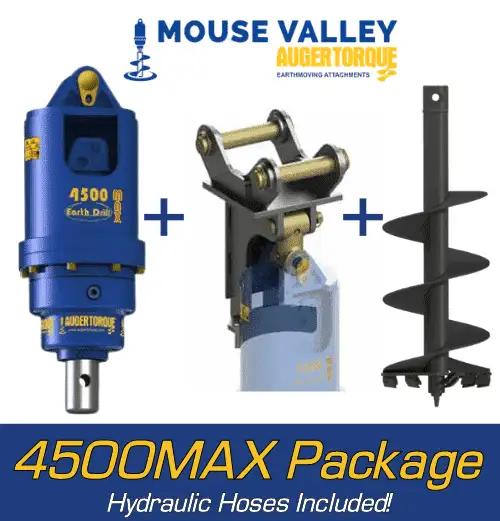

Included in our package deal:
- 4500MAX Earth Drill
- Double Pin Cradle Hitch – Fabricated to suit your excavator
- Tungsten Auger up to 450mm
- Pair of 1/2″ BSP Hydraulic Hoses – no couplers
All you require is a pair of hydraulic couplings to suit your machine
This package deal would be ideal for the following excavators (as a guideline):
Any excavator in the 3t to 5t weight class
Earth Drill Specifications
4500MAX Earth Drill
Oil Pressure Range: 80 – 240 Bar
Torque Range: 1,500 – 4,499 Nm
Oil Flow Range: 50 – 95 lpm
Speed Range: 43 – 81 rpm
Output Shaft: 65mm Round
Width: 244 mm
Technical Specifications – PDF Download
4500MAX Earth Drill Technical Specs
4500MAX Earth Drill Speed Chart
4500MAX Earth Drill Torque Chart
S4 Tungsten Auger
Overall length: 1.2m
Fully flighted: 950mm
Diameter: Up to 300mm
Hub Size: 65mm Round
Overall Length given includes wear parts.
All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System.
Double Pin Cradle Hitch
The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch.
Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time
