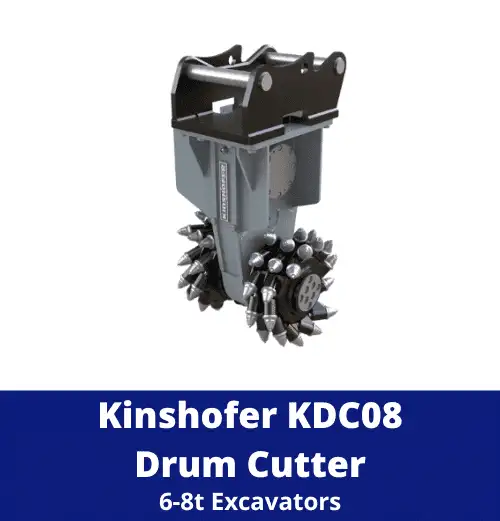

Kinshofer KDC08 Drum Cutter (6-8t Excavators)

£15,780.00£17,195.00

  • Scaling of rock and concrete walls
  • Tunnel Excavation
  • Trenching in extreme grounds
  • Loosen hard rock ground effectively
  • Under water trenching up to 25m
  • Tunnel excavation
  • Mining operations

Download PDF Spec Sheet for Kinshofer KDC drum cutters

SKU: KDC08 Category:

Description

The transverse drum cutter range is designed to work on a wide range of excavators (2-60T).

They are an ideal attachment for rocky terrain excavation trenching and surface scaling in the most adverse terrain conditions. Coupled with multiple drum configurations, our drum cutters ensure high performance, maximum productivity and value add to our customers.

Applications

  • Scaling of rock and concrete walls
  • Tunnel Excavation
  • Trenching in extreme grounds
  • Loosen hard rock ground effectively
  • Under water trenching up to 25m
  • Tunnel excavation
  • Mining operations

Auger Torque’s Drum Cutters are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

  • HIGH QUALITY CONSTRUCTION & DESIGN

    Low noise and vibration levels guarantee low-fatigue working conditions and less wear on your machine’s components.

  • ROBUST SPUR GEAR

    Extreme torque amplification due to our robust spur gear, to achieve best in class pick force where it matters most. No nonsense workhorse.

  • LARGE DRUM AND PICK ASSORTMENT

    Fast, easy exchange of wear parts reduces downtime and enables your drum cutter to be ready for any task.

  • WATERPROOF TO 25M DEPTH

    Our drum cutter range is completely waterproof up to a depth of 25m. This feature allows trenching in the most inaccessible locations.

  • ADJUSTABLE HYDRAULIC MOTORS

    Hydraulic motor can be adjusted in accordance with hydraulic output of excavator to maximise throughput and make sure your machine & attachment work at their highest level of efficiency & performance.

  • LOW MAINTENANCE OPERATION

    Durable, low-maintenance operation due to large-scale drive shaft bearing, heavy-duty sealing system and robust housing structure. Suitable for hard continuous running!

Kinshofer KDC Drum Cutter Specifications

ModelKDC04KDC06KDC08KDC15KDC20KDC30KDC35KDC45KDC60
Carrier Weight (t)2-44-66-88-1515-2020-3030-3535-4545-60
Product Length (mm)7007007008359651093109510951345
Drum Dimensions (mm)
(width x dia.)
500x325500x325500x325630x390750x550900x615900x6151200x7601400x760
Connecting Plate (mm)
(width x dia.)
320x310320x310320x310405x475530x510600x650600x650740x780740x780
Weight approx.2502502504208501400146025502800
Nominal Power (hp)18182230456090120140
Max.Torque (nm)2330233047507880999013650241503620043600
Oil Flow (lpm)48506090-115100-170140-210240-340300-500360-600
Operating Pressure (bar)215/180215/180215/180225/180200/180240/200210/180205/180225/190
Pic Force (kN)16-26.616-26.616-26.623-4032-3644.539.378-95115
Cutting Width (mm)50050050063075090090012001400

Additional information

Drum & Pick Arrangements

Excavating, Demolition, Profiling

Bobcat

E62, E85

Case

CX60C, CX85D

Caterpillar

306 CR, 307.5, 308 CR

Doosan

DX63-3, DX85R-3

Hitachi

ZX65U, ZX85U

JCB

8085, 85Z

Kobelco

SK75, SK85

Komatsu

PC80MR, PC88MR

Kubota

KX060, KX080

Sany

SY75C, SY80U

Takeuchi

TB175, TB175W, TB260, TB285, TB290, TB295W

Terex

TC60, TC75, TC85

Volvo

EC60, ECR88, EW60

WackerNeuson

ET65, ET90, EZ36

Yanmar

SV60, ViO17, ViO80
