Auger Torque 5500TC Earth Drill

High quality hydraulic motors, output shaft bearings which are 50% larger than the nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the 5000-8000MAX series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

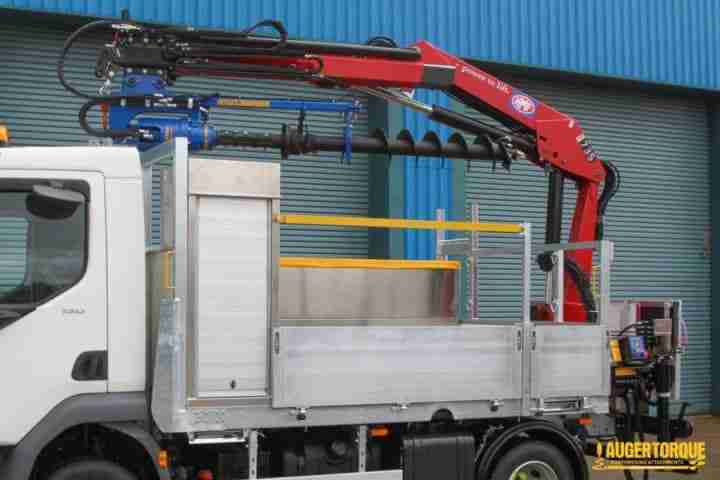

Truck Cranes and Hiabs up to 15t/ Metre

Oil Pressure Range: 80 – 260 Bar

Torque Range: 1685 – 5477 Nm

Oil Flow Range: 15-50 lpm

Speed Range: 11 – 38 rpm

Hub Options: 75mm Square

Height: 780 mm

Width: 269 mm

Weight: 108 kg

Auger Range: S5

Rec. Drilling Diameter Range: 150 – 750 mm

Download Specification Sheet
